Vibratory Powder Sifting Machine
Industrial Vibratory Powder Sifting Machine is a kind of powder, particle and solid liquid sieving and filtering equipment.
Description
Vibratory Powder Sifting Machine Manufacturer
Industrial Vibratory Powder Sifting Machine is a kind of powder, particle and solid liquid sieving and filtering equipment. Widely applied for many sieving and filtering industrial with advantages of high efficiency and low cost.
Vibratory Powder Sifting Machine Features
The vibratory powder sifting machine has the following function: Classification and screening: The solid particles are divided into different particle groups of equal size, and a single rotary vibrating screen can accurately and continuously classify 2-6 particle segments at the same time. It is suitable for the classification of granular and powdery materials in many industries.

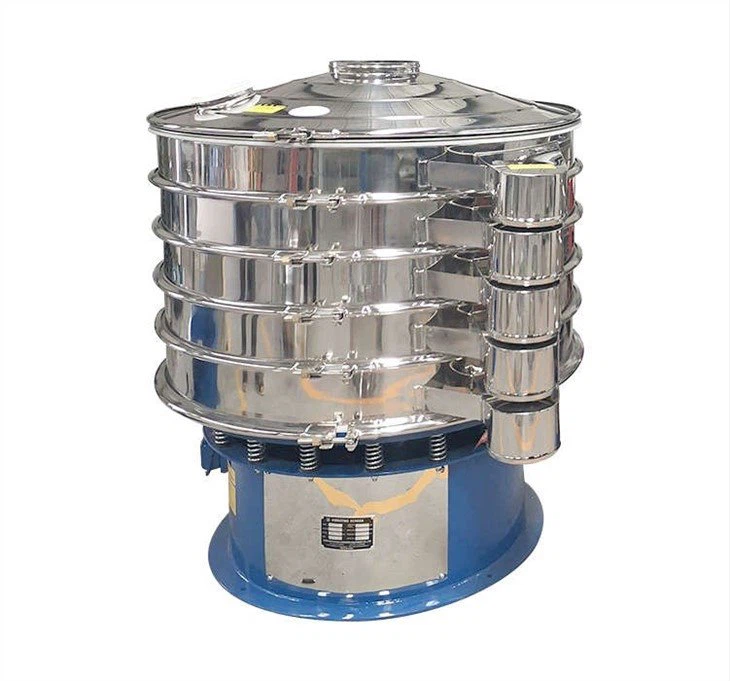

Stainless steel Vibratory Powder Sifting Machine
Vibratory Powder Sifting Machine Working Principle
The rotary vibrating screen uses a vertical vibration motor as the excitation source. The eccentric weights at the upper and lower ends of the vibrating motor convert the rotary motion into horizontal, vertical and inclined three-dimensional motion, and transmit it to the screen surface of the rotary vibrating screen. The material enter the machine and passes through 1-5 layers of sieves with different mesh numbers according to different screening requirements.
Vibratory Powder Sifting Machine Details Pictures
Vibratory Powder Sifting Machine Advantages
The vibratory sieving machine has the following advantages for the fine powder sieving and liquid filtering functions. hope help for your choice.
1. Small volume, light weight, easy to move, the direction of the discharge port can be adjusted arbitrarily, and the coarse and fine materials are automatically discharged, which can be automated or manual operation.
2. High sieving accuracy, powder, granule, mucus can be used.
3. No mechanical action, easy maintenance, single-layer or multi-layer use.
4. The vertical vibration motor is adopted, without mechanical transmission, so that the excitation force transmission process has no loss and is effectively transmitted to the screen surface.
Vibratory Powder Sifting Machine Factory show
Vibratory Powder Sifting Machine Technical Parameters
Model | Diameter (mm) | Efficient dia(m2) | Layer | Mesh size | Power(kw) | |
R-400 | 1s | ∅400 | ∅380 | 1-5 | 3-500 | 0.25 |
2s | ||||||
3s | ||||||
R-600 | 1s | ∅600 | ∅600 | 1-5 | 3-500 | 0.55 |
2s | ||||||
3s | ||||||
R-800 | 1s | ∅800 | ∅750 | 1-5 | 3-500 | 0.75 |
2s | ||||||
3s | ||||||
R-1000 | 1s | ∅1000 | ∅900 | 1-5 | 3-500 | 1.1 |
2s | ||||||
3s | ||||||
R-1200 | 1s | ∅1200 | ∅1100 | 1-3 | 3-500 | 1.5 |
2s | ||||||
3s | ||||||
R-1500 | 1s | ∅1500 | ∅1450 | 1-3 | 3-500 | 2.2 |
2s | ||||||
3s | ||||||
R-1800 | 1s | ∅1800 | ∅1750 | 1-3 | 3-500 | 3 |
2s | ||||||
3s | ||||||
R-2000 | 1s | ∅2000 | ∅1950 | 1-3 | 3-500 | 4 |
2s | ||||||
3s | ||||||
Vibratory Powder Sifting Machine Packaging
Vibratory Powder Sifting Machine Industrial Applications
Chemical industry: resins, coatings, industrial drugs, cosmetics, paints, traditional Chinese medicine powder, etc.
Food industry: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
Pollution treatment: waste oil, waste water, dyeing and finishing waste water, auxiliaries, activated carbon, etc.
Metal, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory material, kaolin, lime, alumina, heavy carbonic acid Calcium, quartz sand, etc.
