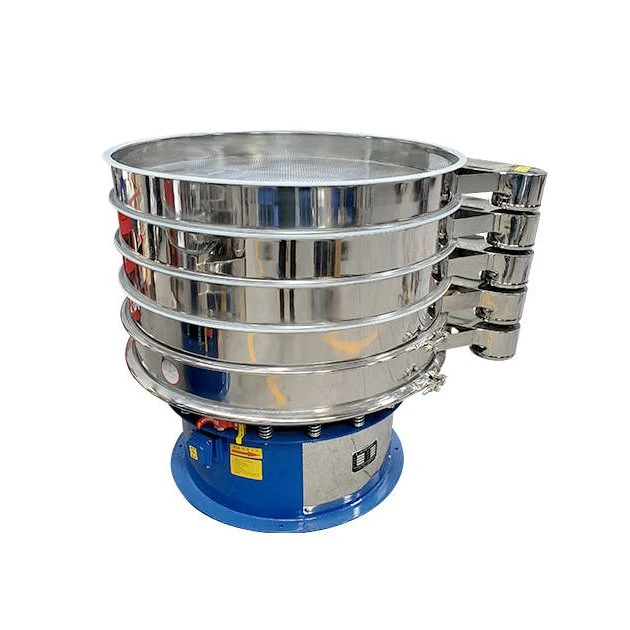

Vibratory Screen Separator
video
Vibratory Screen Separator

Vibratory Screen Separator

Vibratory Screen Separator is a widely industrial application powder sieving and liquid filtering equipment. It can be used to impurity removal or material spec grading.

Description

Vibratory Screen Separator High Efficient


Vibratory Screen Separator is a widely industrial application powder sieving and liquid filtering equipment. It can be used to impurity removal or material spec grading.




Vibratory Screen Separator Features


Vibratory Screen Separator for Removal impurities: The material is screened to a certain degree of fineness, which can remove the impurities contained in the material, purify the raw material, and ensure a smooth process, thereby improving product quality and economic benefits.


Vibratory Screen Separator details Pictures



Vibratory Screen Separator Custom Services

During impurity removal course, there often refer to deironing impurity from flour or granular material. We design the deironing device mounted on the discharging of the vibrating sifting machine. According to the client demand and discharging port size, we design different quantity magnetic bar. When the material is discharged from outlet, the material will pass through the deironing device and remove the iron impurity in the material.


Vibratory Screen Separator Packaging Show




Vibratory Screen Separator Application


Iron Impurity Removal Vibratory Screen Separators are widely used in food, pharmaceutical, chemical, plastic, rubber, dyes and other fields to remove ferromagnetic impurities from dry powder, flake, granular, liquid and other materials.




So if you need to use the vibrating sifting machine to solve deironing function, we are glad to recommend the suitable iron removers vibratory sifting machine to you.


Vibratory Screen Separator Parameter


Model

Diameter (mm)

Efficient dia(㎡)

Layer

Mesh size

Power(kw)

Size (mm)

R-800

1s

∅800

∅750

1-5

3-500

0.75

900*900*750

2s

3s

R-1000

1s

∅1000

∅900

1-5

3-500

1.1

1160*1160*810

2s

3s

R-1200

1s

∅1200

∅1100

1-3

3-500

1.5

1360*1360*980

2s

3s

R-1500

1s

∅1500

∅1450

1-3

3-500

2.2

1850*1850*1130

2s

3s

R-1800

1s

∅1800

∅1750

1-3

3-500

3

2200*2200*1050

2s

3s


More types of the Vibratory Screen Separators

Vibratory Screen Separators factory supplier
