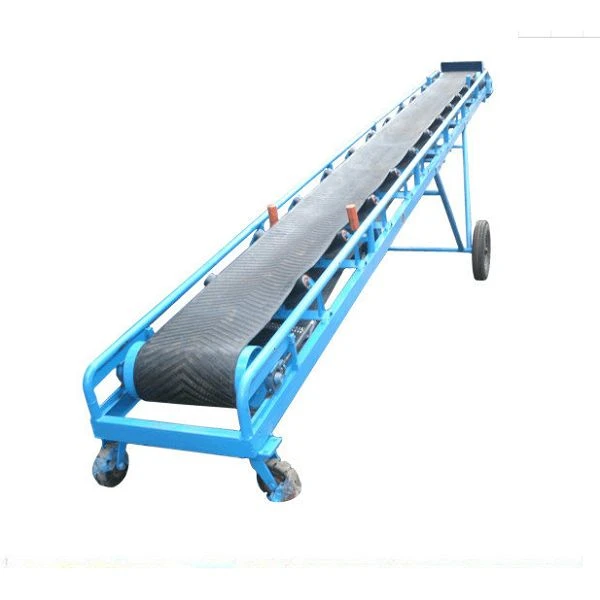

Design points of belt conveyor

1. Working environment, conditions and conditions

The hours of operation per day, the frequency of operation, the service life of the belt conveyor, and the method of feeding and unloading need to be considered.

Working environment and conditions: ambient temperature, open air or indoor, environmental protection requirements, mobile or fixed, telescopic requirements.

2. Problems with conveyor lines and conveyor belts

The size of the conveying line needs to be considered in detail, including: inclination angle, maximum length, lifting height; size of straight and curved segments; connection size, etc.

Conveyor belt: maximum sag requirements, simulated frictional resistance coefficient, friction coefficient, safety coefficient.

3. The nature and conveying volume of materials

The specific properties of the material need to be considered, including: bulk density, angle of repose, particle size, maximum lumpiness, material moisture, material wear, cohesion and coefficient of friction. The conveying volume, the conveying volume that can be directly achieved when the material flow is uniform, and the basic statistical data of the material flow can be considered when the material flow is uneven.
